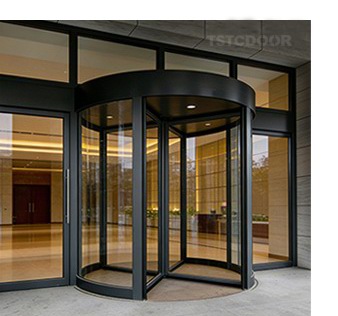

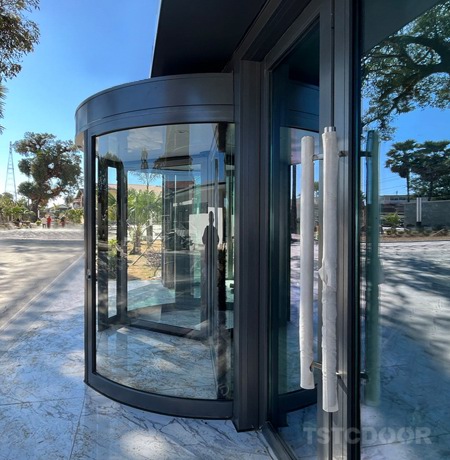

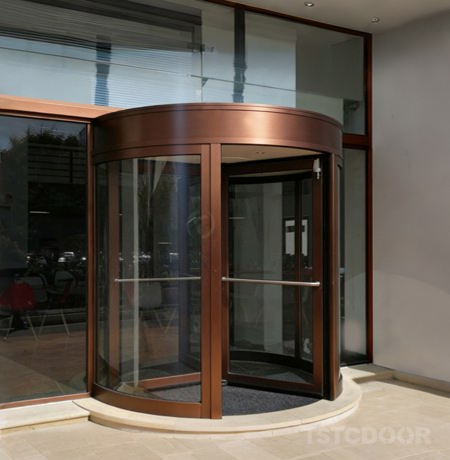

TSTC 3/4 Wing Revolving Door with the model - TAR300

Why Choose TSTC 3/4 wing Automatic Revolving Door ?

• Reliable design for Door Structure and Smart Control .

• Safety Features with enough safety Sensors, Force-sensitive and Torque Control, Panic Breakout System could be provided if need .

• Distributors and installed projects around the world bring you confidence for selling and maintenance .

• Economic Price that could bring you more profit .

Certification

TSTC revolving doors with ISO9001, ISO14001, CE certifications .

Specifications

Standard dimensions are as below, customize service could be provided .

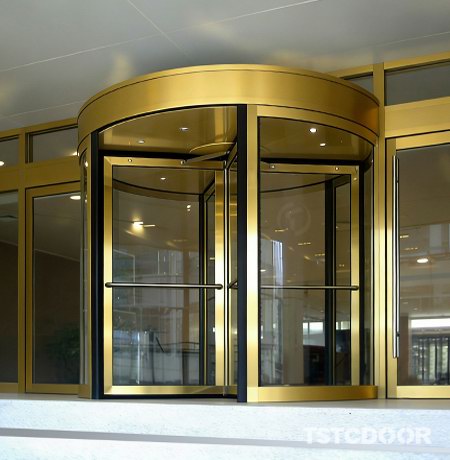

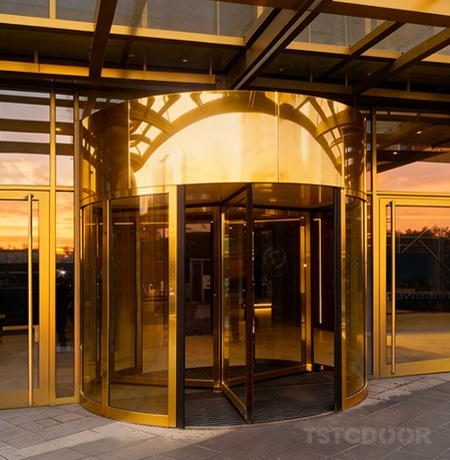

Surface Treatment /Finish

Aluminium frame with Anodizing, RAL Painting or Stainless Steel cladding.

Special Load-Bearing Structure – Drum Wall

One of the outstanding features for TAR300 is the drum wall load-bearing structure, compared with other brands' pillar load-bearing structure , this special design can increase structural safety and make the door possess the higher stability.

Qty. Of Door Wings

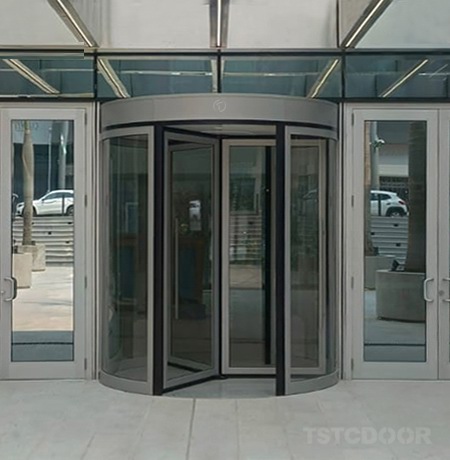

The revolving door is a 3 / 4 wing configuration.

Technical Data

The Key Electronic Parts

▪ Motor and Gear Box

SIEMENS, 250W for  motor . The strength of SEW Gear Units is their simple mechanical structure. This yields a higher efficiency than pure worm gear units. In addition, the S series gear units are quiet during operation.

The simple design makes the individual adjustment of torque and speed allows for space-saving installation,however,the combination with a helical gear stage significantly increases the efficiency compared to pure helical-worm gear units. The torque ranges from 92 Nm to 4,000 Nm.

▪ MCU - Main Control Unit

To the Main Control Unit, we used the 1st class system in the world, SIEMENS , the model we used have the powerful intelligent I/O "positioning" module that was developed specially for the smartest programmable controller. It could provides numerous functions for both open-loop and closed-loop positioning.

▪ Inverter / Frequency Converter

Germany AC Inverter for 0.25kW (0.33HP) 220V 3 Ph motor. Converts fixed frequency single phase 220V input to variable frequency three phase 220V to control the speed of a standard AC Induction motor.

Overload: 150% x 60 seconds, 200% x 3 seconds.

Speed Control Range: 0-599Hz .Braking: No Dynamic Braking .

EMC Compliance: IEC 61800-3 Second Environment C2 (Industrial).

▪ Encoder

The key function of Encoder is the Positioning, and the Encoder we used for our revolving door TAR200 delivers outstanding performance in mechanical shock-resistance and is capable of withstanding higher axial and radial loads so as to meet various industrial environments. Its special position of cabling fits to the limited space.

Max. Speed rpm: 6000 rpm 1, continuous .

Max. load capacity of the shaft : 60 N axial, 100 N radial.

Protection class: IP66 .

Adjust Tool

We use SIEMENS TD400 , LENZE /SIEMENS BOP to ensure completely and exactly suit for our revolving doors.

Operations

The door will be able to be set to operate in one of the following modes as required by the building owner. The switching between these modes is turn of a key on an operating panel.

1. Night Lock. The door can find locking-up position automatically and lock up manually to ensure safety of the whole building.

2.Continous Revolving. Door keep revolving at low speed if no pedestrians, door revolves at normal speed if pedestrians are detected by infrared sensor and the mode will keep on until no pedestrians. Specially designed for heavy traffic flow.

3. Go-stop. The door will automatically revolve (through sensor activation) when the door is approached upon. This setting is ideal to reduce energy consumption.

Safety Features

The following safety equipment will be fitted to the revolving door.

▪ Vertical Safety Switch

When the safety rubber squeezed to deformation, the electronic device in the rubber will be triggered and make the door stop revolving immediately. What's more, the safety switch was monitored by the safety relay all the time, the door will stop running immediately if the safety switch was damaged .

▪ Force-sensitive Control

The door will stop revolving when the resistance force exceeds the default value.

▪ Torque Control Function

When the gap to the closing position is less than a certain distance, the driving force of the driving system will be reduced. So even if a passerby tries to rush in, he will not be injured.

▪ Emergency Stop Button

The emergency stop button is able to stop movement of the automatic door under any circumstance, ensuring safety of the passersby in case of emergency.

▪ Disabled Push Button /Handicap Button

When pressing the disabled push button, the door will revolve with a slower speed for a round, after that, the door revolves normally.

▪ Anti-strike Light Curtain (Optional)

When the pedestrians approach the revolving door wing, the anti-strike Light Curtain which assembled on the door wings will be triggered, and make the door stop immediately, to keep people from striking by the door wing .

▪ Panic Breakout System (Optional)

The door leave can be manually folded in case of emergency or passing large objects.

▪ Night Security Door (Optional)

Depending on customer preferences, two curved doors can be added outside the drum wall to close the whole revolving door system when needed. This option provides extra protection to the building and the door .

Safety Glass

All glass meets the requirements of the international standards. The glass has excellent shock resistance, burglary proof, anti-explosion performance.

• The curved wall will be fitted with curved 4+4mm laminated safety glass .

• The door wings will be 4+4mm laminated safety glass .

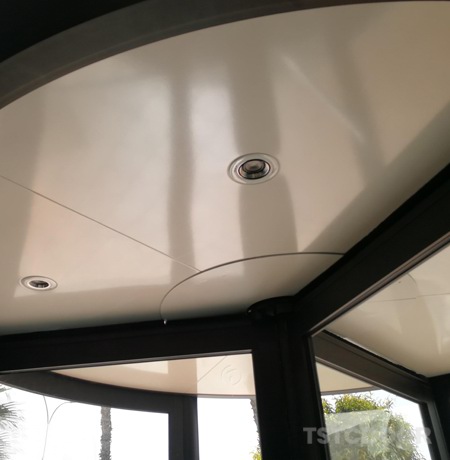

Ceiling Lights

NVC MR16A , LED Light, 12V/AC  .

Delivery & Storage

Deliver materials to job site in manufacturer's packaging undamaged, complete with installation instructions.

Store off ground, under cover, protected from weather and construction activities.

Delivery time:  About 35 work days after get prepayment .

Warranty

TSTC provides 2 year service guarantee for TAR300, this guarantee is valid in the time period up to 2 year from the effective date of product arrival and covers the replacement of parts damaged under normal product use .

After Sales Service

TSTC is committed to providing sufficient and reliable accessories to the suppliers and distributors. TSTC offers timely technical support to provide the fast and effective after-sales services for the customers all around the world.

24-hour per day/seven day per week emergency service will be available.
