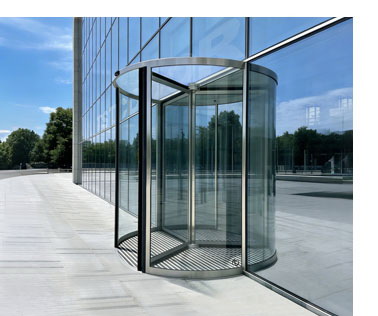

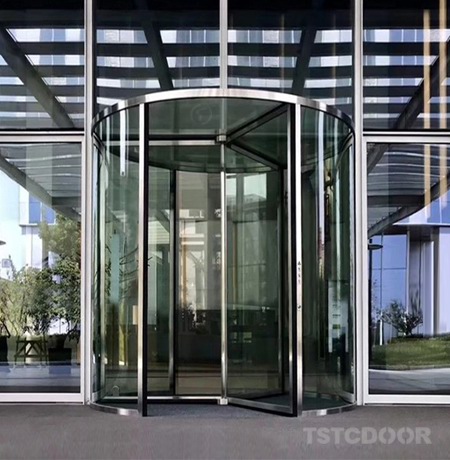

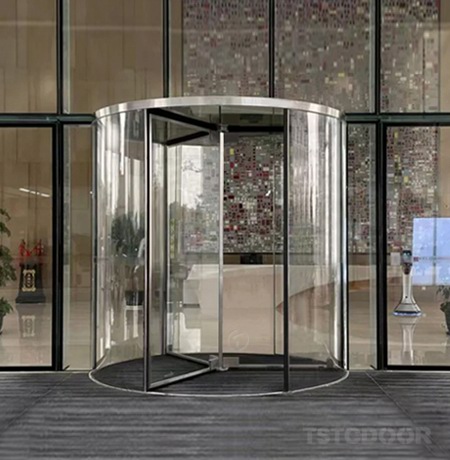

TSTC  3/4 Wings All Glass Revolving Door - TAR600

Advanced and Mature Technology.

• All glass design, Reliable design for Door Structure and Smart Control , Underground drive mode.

• Safety Features with enough safety Sensors, Force-sensitive and Torque Control, Panic Breakout System could be provided if need .

• Distributors and installed projects around the world bring you confidence for selling and maintenance .

• Economic Price that could bring you more profit .

Warranty

TSTC provides 2 years service guarantee with TAR600, this guarantee is valid in the time period up to 2 year from the effective date of product arrival and covers the replacement of parts damaged under normal product use .

Certification

TSTC all glass revolving doors with ISO9001, ISO14001, CE certification.

Configuration

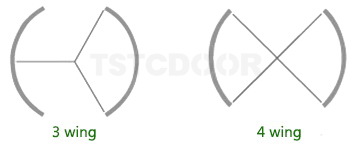

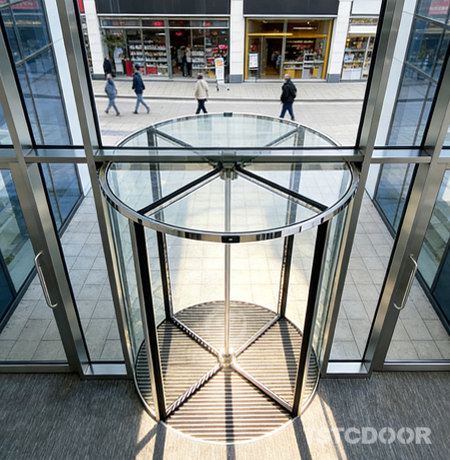

The revolving door is a 3 /4 wing configuration.

Specifications

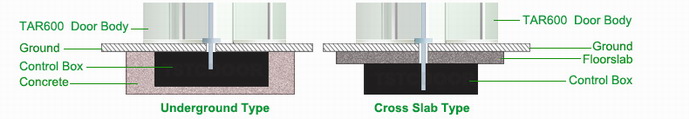

2 Types for Installation

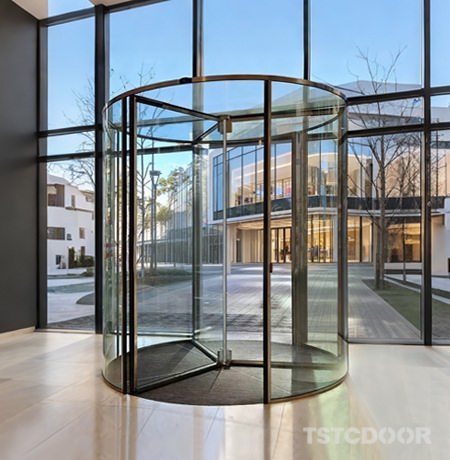

The all-glass revolving door used an unique bottom driving design, which allowed the door body to be smooth and transparent, satisfying modern designer’s preferences. The Installation including the" Underground" and "Cross Slab" types.

Adjust Tool

We use SIEMENS BOP and TD400 to ensure completely and exactly suit for our revolving doors.

The Key Electronic Parts

▪ Motor and Gear Box

Brand , SIEMENS, 250W for  motor . The strength of SEW Gear Units is their simple mechanical structure. This yields a higher efficiency than pure worm gear units. In addition, the S series gear units are quiet during operation.

The simple design makes the individual adjustment of torque and speed allows for space-saving installation,however,the combination with a helical gear stage significantly increases the efficiency compared to pure helical-worm gear units.  The torque ranges from 92 Nm to 4,000 Nm.

▪ MCU - Main Control Unit

To the Main Control Unit, we used the 1st class system in the world, SIEMENS , the model we used have the powerful intelligent I/O "positioning" module that was developed specially for the smartest programmable controller. It could provides numerous functions for both open-loop and closed-loop positioning.

▪ Inverter / Frequency Converter

Germany AC Inverter for 0.25kW (0.33HP) 220V 3 Ph motor. Converts fixed frequency single phase 220V input to variable frequency three phase 220V to control the speed of a standard AC Induction motor.

Overload: 150% x 60 seconds, 200% x 3 seconds.

Speed Control Range: 0-599Hz

Braking: No Dynamic Braking

EMC Compliance: IEC 61800-3 Second Environment C2 (Industrial).

▪ Encoder

The key function of Encoder is the Positioning, and the Encoder we used for our revolving door TAR200 delivers outstanding performance in mechanical shock-resistance and is capable of withstanding higher axial and radial loads so as to meet various industrial environments. Its special position of cabling fits to the limited space.

Max. Speed rpm: 6000 rpm 1, continuous .

Max. load capacity of the shaft : 60 N axial, 100 N radial.

Protection class: IP66 .

Working Modes

▪ Continuous working mode

The door keeps revolving at low speed if there is no pedestrian, and revolves at normal speed if pedestrians are detected. The door will slow down when there’s no pedestrian. This mode is quite suitable for large traffic flow.

▪ Start/Stop working mode

The door stops when there’s no pedestrian and revolves at normal speed if pedestrians are detected. After one cycle, the door will stop if no pedestrian is detected. This mode can save a lot of energy.

Safety Features

The following safety equipment will be fitted to the revolving door.

▪ Vertical Safety Switch

When the rubber profile is pressed, the door will stop revolving immediately. What's more, the safety switch could be monitored by the safety relay all the time, the door will stop running immediately if the safety switch was damaged .

▪ Emergency Stop Button

The emergency stop button is able to stop movement of the automatic door under any circumstance, ensuring safety of the passersby in case of emergency.

▪ Force-sensitive Control

The door will stop running when the resistance force exceeds the default value.

▪ Torque Control Function

When the gap to the closing position is less than a certain distance, the driving force of the driving system will be reduced. So even if a passerby tries to rush in, he will not be injured.

▪ Panic Breakout Function

The door leave can be manually folded in case of emergency or passing large objects.

▪ Night Security Door /Night Lock

Depending on customer preferences, two curved doors can be added outside the drum wall to close the whole revolving door system when needed. This option provides extra protection to the building and the door.

▪ Disabled Push Button

When pressing the disabled push button, the door will revolve with a slower speed for a round, after that, the door revolves normally.

▪ Horizontal Safety Light Curtain

The anti-collision light barriers installed on top of the revolving wings allow the doors to brake when any passersby or objects are detected within a defined scale.

Safety Glass

All glass meets the requirements of the international standards. The glass has excellent shock resistance, burglary proof, anti-explosion performance.

• Curved glass was 16mm(8+8) thick clear laminated glass.

• Flat glass was 12mm thick clear toughened glass.

• Ceiling was constructed of 16mm(8+8) semi-laminated and semi-toughened safety glass.

Technical Data

Delivery and Storage

Deliver materials to job site in manufacturer's packaging undamaged, complete with installation instructions.

Store off ground, under cover, protected from weather and construction activities.

Delivery time: about 35 work days after getting prepayment.

After Sales Service

TSTC is committed to providing sufficient and reliable accessories to the suppliers and distributors. TSTC offers timely technical support to provide the fast and effective after-sales services for the customers all around the world.

24-hour per day/seven day per week emergency service will be available.

Tel : +86 188 4008 6078 .
