Automatic Folding Door - TAF100S
Folding Door is the type of door which opens by folding door leaves or so-called door panels, and closes by unfolding the door leaves. It is an ideal type of door which is suitable for door areas with limited space. When a folding door is fully opened, it occupies the minimum space and could provide maximum opening width.

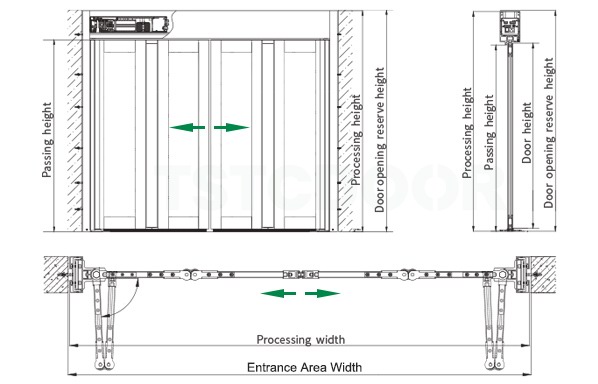

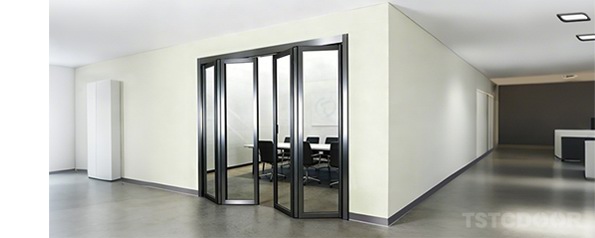

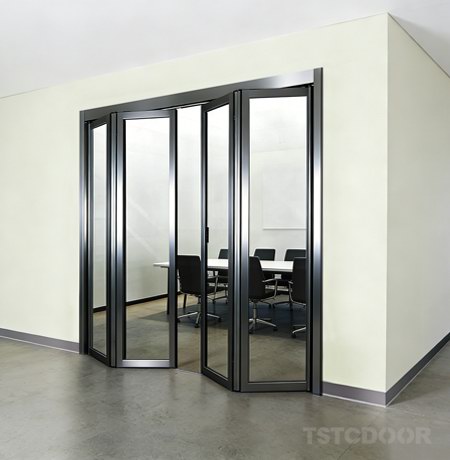

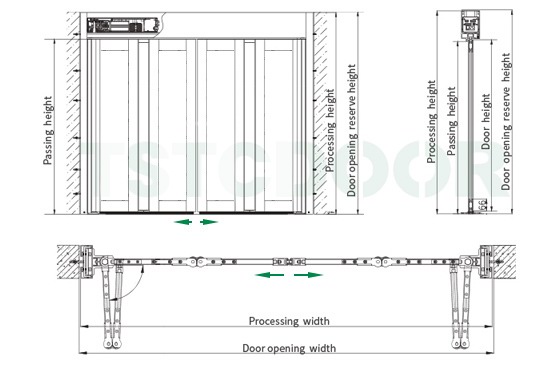

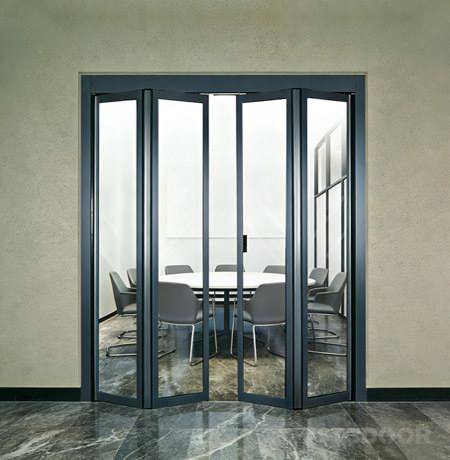

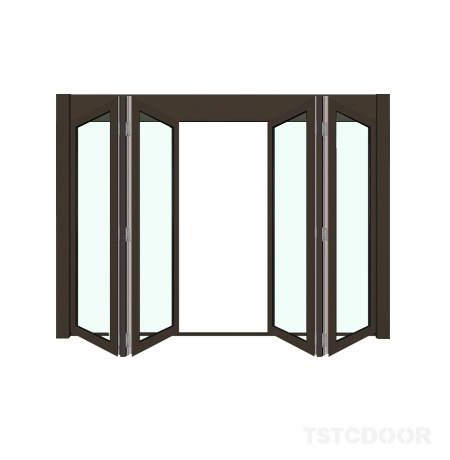

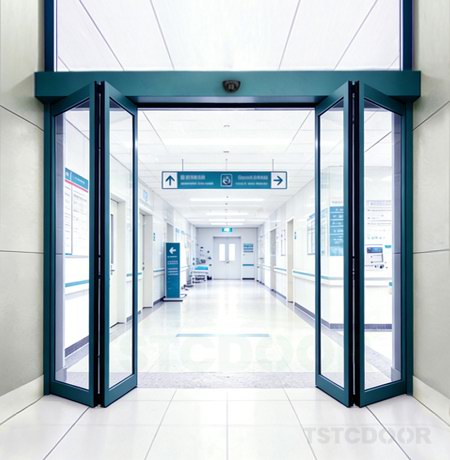

TAF100S is the automatic folding door, slim type with 4 folding door leaves (2 leaves for each side), mainly used for the door area inside the building. It could assemble one or two motors (one for single parting and two for bi-parting ), aluminum alloy door frame and tempered glass, integral structure with surrounding doorcase, seamless connection. The smooth door body automatically opens and closes could provide a comfortable and safe passage space, with sound insulation, anti-pinch function and force sensitive system.

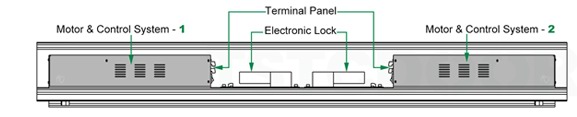

▪ Electronic System /Operator
TAF100S adopts a highly integrated design, innovatively integrating 3 core components including the motor, control panel, and terminal board into a single unit, with all major internal component wiring pre-completed at the factory. This design fundamentally simplifies the installation process of folding doors.

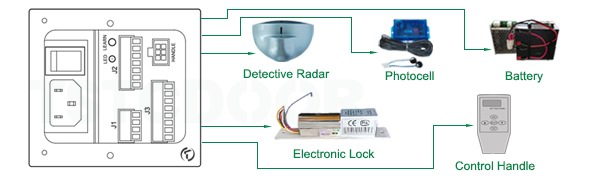

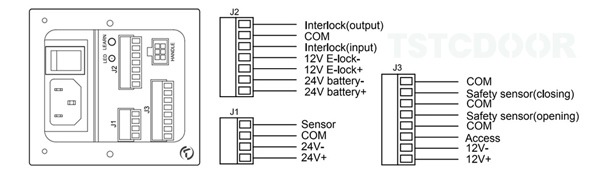

▪ Wire Connection
TAF100S adopts a highly integrated design, all major internal component wiring had already pre-completed at the factory, after finishing assembling the door body, we only need to install the entire TAF100S drive unit in place, then perform a small number of external functional connections (such as radar sensors, electronic locks, and other peripherals) to quickly realize the power-on operation of the folding door. No complex on-site wiring and debugging are required, which greatly reduces the installation technical threshold and labor costs.
Note : The Automatic Folding Door TAF100S could set the parameters with the help of extra Handle, it could connect the terminal panel in the Operator (above the door body), then could change the value like door opening time, closing time, door opening keep time etc..

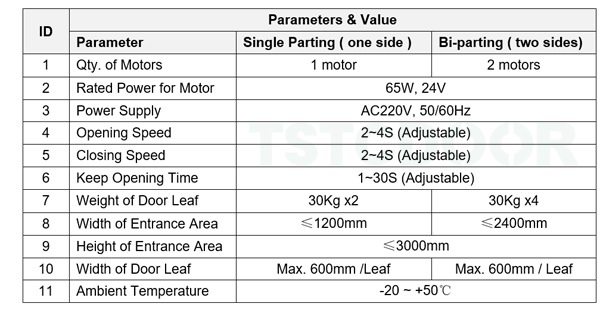

▪ Technical Data
