Revolving doors are much common in today's society, when you make purchase in a shopping mall, go to your office in an office building, or go to other cities by plane in an airport, you have big probability to see a revolving door in the main entrance area of the building, and do you know something about the revolving door ?

To a revolving door, it consist of 2, 3 or 4 wings which assembled in the central pivoting shaft, a vertical type of axis. The door wings could revolve around the central axis in a cylinder which made of aluminum profile and glass. The cylinder have 2 opening areas, one is for the inner area, the other is for the outer area, when the door wings revolve, they could allow pedestrians to go through the cylinder. There are 2 types of revolving doors , one is manual and the other is automatic.

From the name, we could know that the manual revolving door will be run with the help of hands, and automatic revolving door could be run with the help of electronic parts .

One big feature of the revovling door is the energy-saving. Because of the special design, the revolving door could make the inner space sealed off all the time, even the temperature inside and outside the room is big different, the energy will not lose big . After our calculation, to the same entrance area, the price difference of revolving door and sliding door could be equal to the energy consumption cost of a 2-3 years.

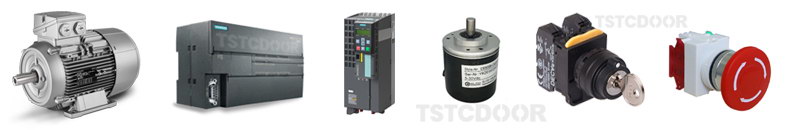

The key parts for an automatic revolving door including the motor, inverter, control unit, encoder, sensors, control panels etc.. The motor is the part which bring the driving force to the door, the inverter is the part to control the driving force of the motor, to make it bigger or smaller when needed. The control unit is the brain of the door, to receive the information and send the instructions to the door. The encoder is the part which could calculate the position of the door wing , to make the door wing revolve and stop in the correct position .The sensors are the parts to detect the pedestians near or in the revovling door, and send the signals to the control unit . The control panel including the parts like key switch, handicap button, emergency stop button, to control the running status of the revolving door .

The working process of a revolving door is as following .When someone walk near the automatic revolving door, the detective radars will be triggered, then the radars will send the signals to the PLC which is the key part of the Control Unit, PLC process the signal which sent by radars and send the instructions to both inverter and motor, then, the motor will start to run, the door wings will also run at the same time, and the people could go through the revolving door. At the same time, the inverter and encoder will also start to work, to control the running speed and stop position of the door wings. When there is something emergency happened, we can press the emergency stop button, then the door will stop immediately,to ensure the pedestians are safe . When disabled people near to the revolving door, they could press the handicap button , then the door will revolve in a lower speed, to ensure the disabled people is safe .
