Key Parts /Components of Commercial Sliding Door -TS300 from TSTC

The commercial sliding door with the model TS300 is the best selling and most classical automatic sliding door from TSTC, with its general safety features like adaptive track technology, self-learning function, self-check for malfunctions, multi-mode control etc....it had already installed in hotels, shopping malls, supermarket, airports and other types of buildings in more than 20 countries in the world .

The Key Spare Parts for TSTC Automatic Sliding Door include Main Control Unit (MCU), Drive Unit (Motor) , Pulley &Hanger (Carriage Wheel Unit), Tension Wheel, Control Panel (PSA or Key Switch), detective sensors /radars could be perfectly substitute for the sliding door (Operator) from the well-known brands in the automatic door industry like GILGEN /KABA /KBB /Stanley etc..

▪ Driving Unit /Motor. Also called motor and bearbox could meet American and European standard with Rated Power 100W, maximum drive Power 150N, could make the door opening speed range from 0.4 to 0.7m/s and door closing speed range from 0.3 to 0.6m/s .

▪ Control Unit . Assembles 32 digits Chip with faster processing speed, more input /output interfaces, easy to expand extra functions.

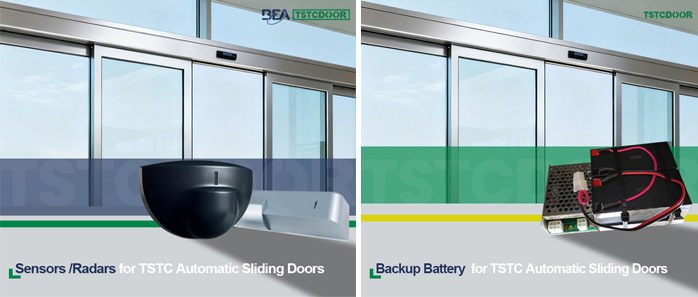

▪ Detective Sensor /Radars . Different shapes and colors could be provided, also cooperated with the world wide famous brands like BEA and OPTEX , microwave type, normal detective radar, Presence &Induction radar.

▪ Durable Rail . It's one of the biggest differences from other brands. The durable rail of TS300 was made of nylon specially, compared with aluminum rail which used most by other brands ,the nylon durable rail possess the advantages like self lubricating, less noise and more wear resistance.

▪ Control Panel . The control panel of TS300 also called PSA which was adopt module design, combination of normal operation ,maintenance and parameters setting . With this control panel, there is no need to open the Cover when setting the parameters or changing the running mode .

▪ Electro-mechanical Lock . It adopt Bi-static working mode which could remain the same status before and after power failure.

▪ Backup Battery . It's the optional part of TSTC sliding door /Operator, provided as the battery pack with 2 pieces of batteries for standard. The battery pack could make the sliding door continue working for at least 30 minutes when power failure, no limitation of operation .What's more, the battery board/electronic board and battery pack adopt a split design, allowing separate maintenance of the batteries and the battery board.

To more details please check our official page of sliding door operator TS300 .
